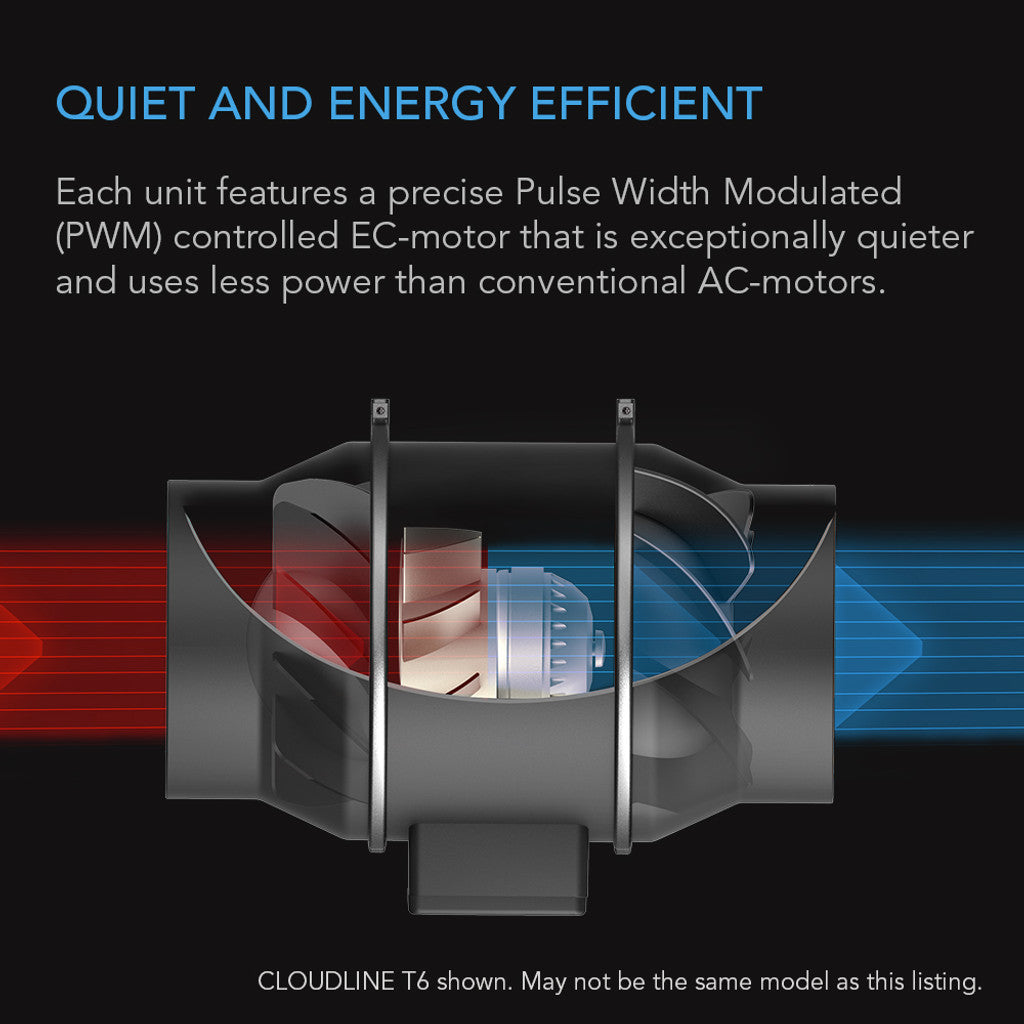

The AC Infinity Cloudline models are now available with us! AC Infinity has been known for years as one of the best fans in the community. AC Infinity is a renowned company specialized in the development and production of high-quality ventilation and cooling solutions for a wide range of applications. Their products are designed to optimize air circulation and temperature control in grow tents, AV equipment rooms, cabinets and other airflow dependent environments. AC Infinity is known for their innovative, quiet and energy-efficient ventilation systems that use advanced technologies such as PWM and EC motors.

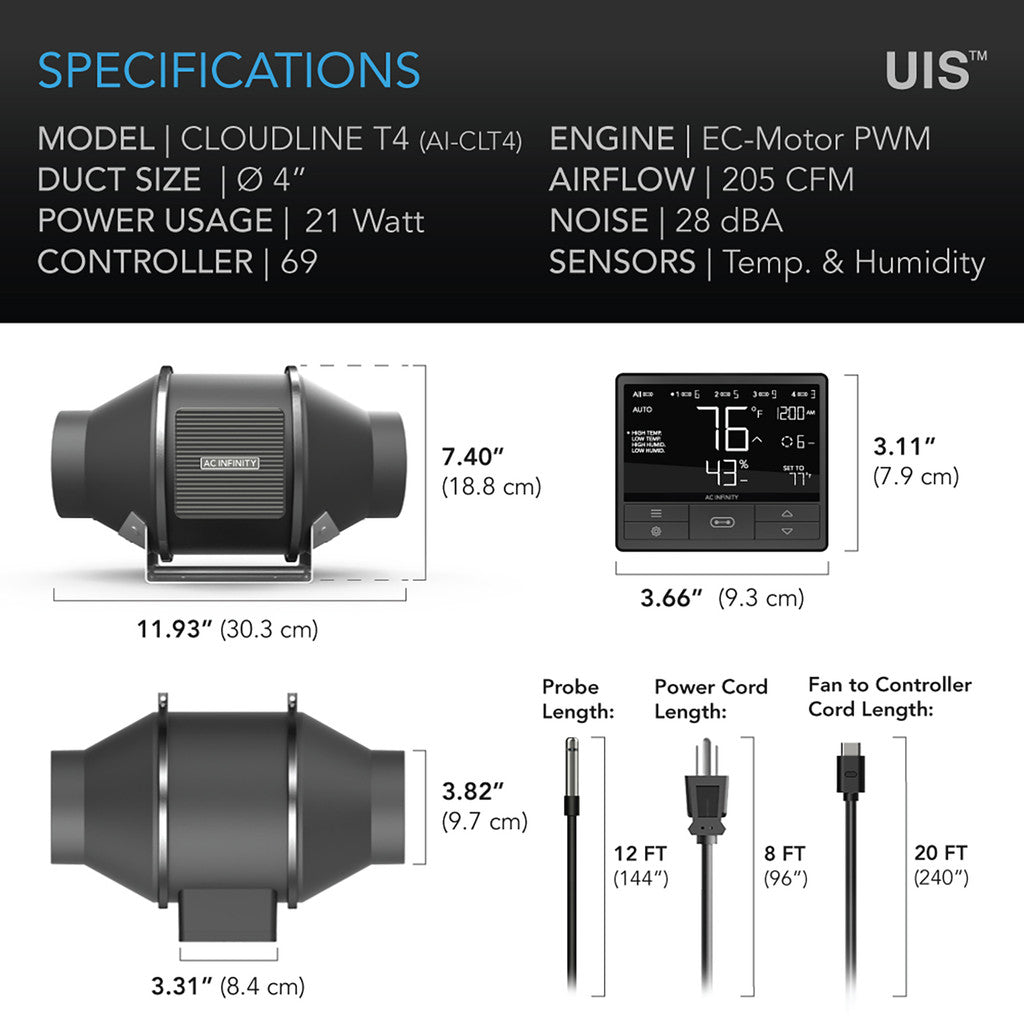

Product and Mounting Dimensions - Fan Unit | |
duct size | 4" |
Total Dimensions | 7.40 x 11.93 x 6.93 in. (18.8 x 30.3 x 17.6 cm) |
Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
Screw Hole Size | Ø 0.197 in. (Ø 0.5 cm) |
Cord Length to Controller | 240in. (20 feet) |
Product and Mounting Dimensions - Controller | |
Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7cm) |
Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7cm) |
Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
Display Size | 3.5 x 1.4 in. (9 x 3.5cm) |
Cord Length to Plug | 108 in. (9 feet) |
Sensor probe length | 144 in. (12 feet) |
Product Performance and Technical Specs | |
Total Airflow | 205 CFM |
total noise | 28dBA |
MaxSpeed | 2800RPM |
Static Pressure | 223 Pa |
Voltage | 100-240V AC |
frequency | 50/60 Hz |
Max Power Draw | 28 W |
Average Power Usage | 21 W |
Current | 1.2 A |
Power Connector Type | US Plug (NEMA 1-15 Type-A) |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 32 to 140°F |
Ingress Protection | IP44 |
Fan Bearings | Double Ball |
Mounting Positions | Horizontal or Vertical |
L10 Life Expectancy | 67,000 Hours |
